QSD2 SERIES
TECHNICAL OVERVIEW
The QSD2 series is a comprehensive propulsion solution that requires minimal maintenance and operates less frequently than other systems, while delivering exceptional performance across all speeds. Constructed from marine-friendly materials, it boasts a lightweight yet robust design, suitable for a diverse range of recreational and commercial uses.
All vital mechanics and components are positioned inboard, protected from harmful elements. The oil-lubricated thrust bearing is water-cooled, and all models can accommodate exhaust with optional flange fittings as illustrated. Each QSD2 drive comes with an intermediate shaft and a custom-designed propeller specified by Q-SPD, along with manual or power steering tailored to the application, thus providing a complete propulsion solution.
The QSD2 series is available in three ratings, designed to support engine power ranging from 450hp to over 1500hp, depending on the specific vessel requirements.
Materials & Features

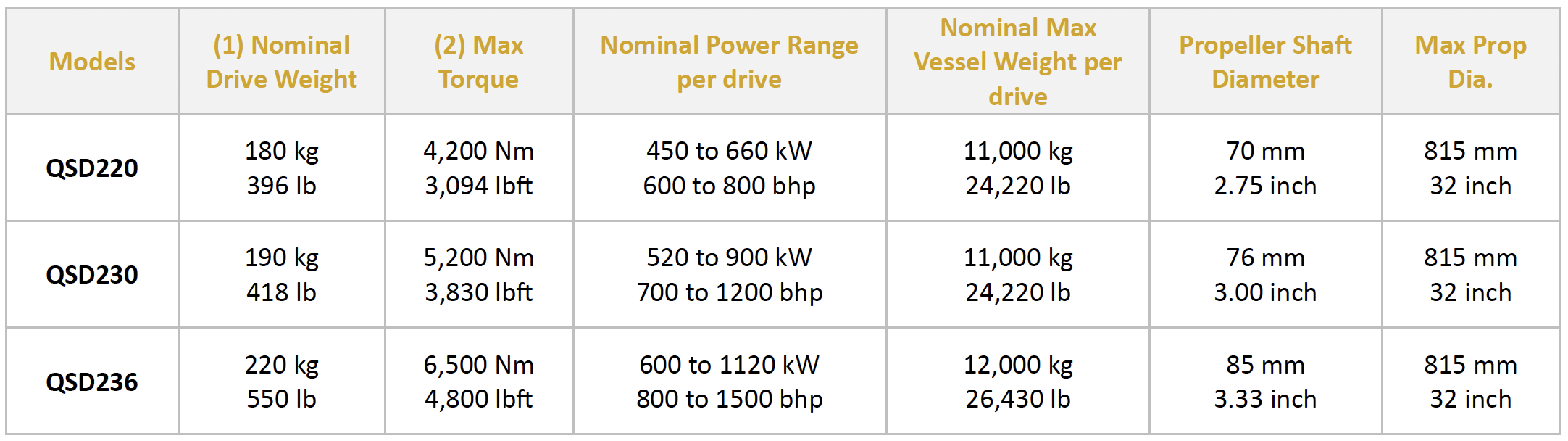

Specifications & Ratings
(1) Weights are nominal for drive only excluding propeller.
(2) These specifications are a guideline only. Actual application limits will depend on shaft speed, power to weight ratio and vessels speed and mission.
* Power limits dependent on application parameters.
** Specifications subject to change.
Steering systems - Power Hydraulic, Power Assist, ECS
Exhaust Flange Adapters and full Bespoke Exhaust system design and build
Custom Intermediate drive shafts for flexible installation
Optional Equipment
Download QSD2 Series Technical Specifications
